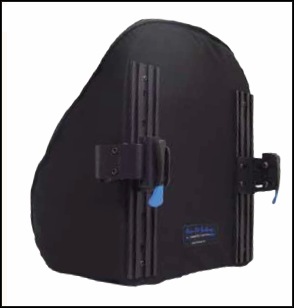

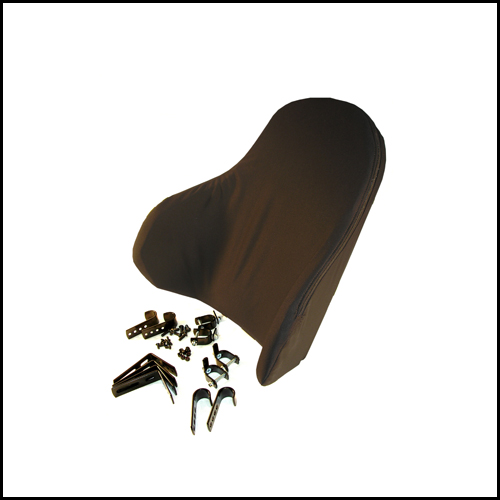

Provides each user with support exactly where it’s needed. This custom made-to-order ergonomically designed back promotes good posture along with exceptional comfort. With our unique modular lateral support system, it’s easy to achieve the fit you are looking for.
• NEW "Quick Clamp" angle adjustable removeable brackets
• NEW Track mount brackets (double slotted)

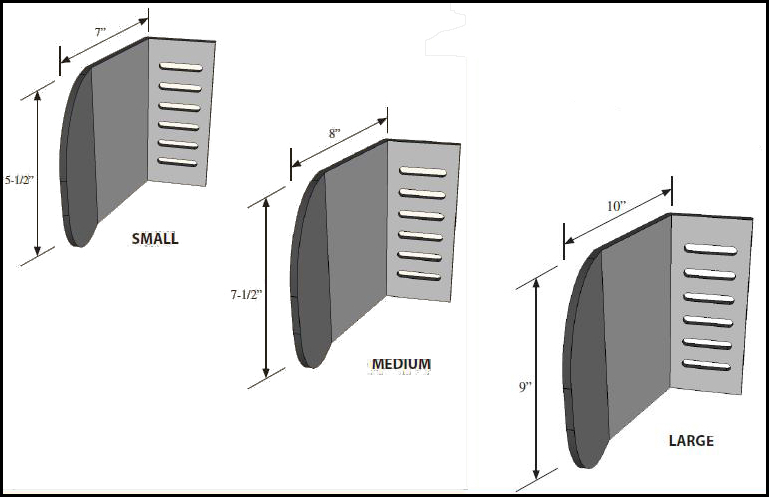

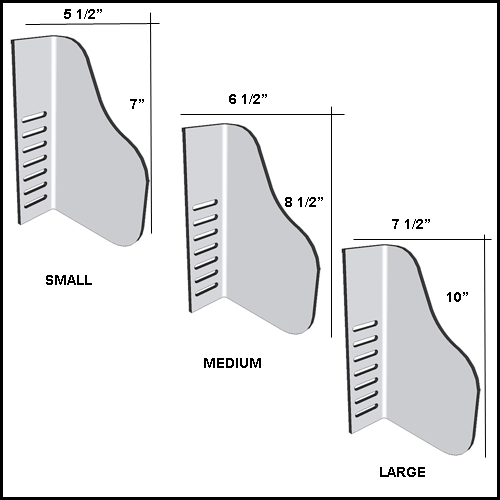

• Choose from 3 standard lateral sizes
• Integrated laterals, width and height adjustable
• Adjustable / removeable lumbar support
• Zippered closure Dartex cover
• ½” base neoprene foam
• 1” top layer HR-Poly foam
• ½” multi-ply wood
• ¼-20 T-nuts
Part Number* |
Lateral Size |
13009-02 |
Accu-Fit Back™ W/Small laterals |
13009-03 |
Accu-Fit Back™ W/Medium laterals |
13009-04 |
Accu-Fit Back™ W/Large laterals |
13009-05 |
Accu-Fit Back™ W/Custom laterals |
*See order form for complete ordering details |

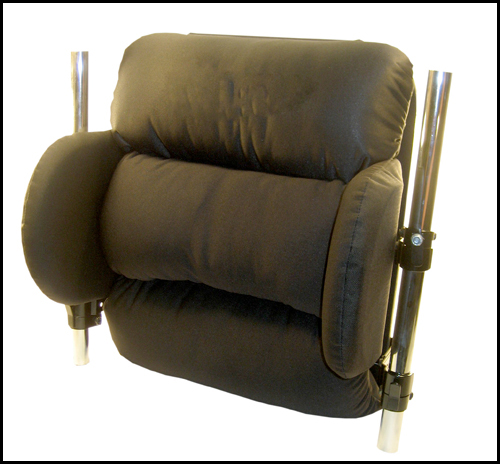

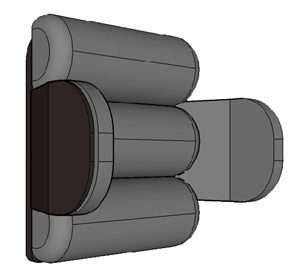

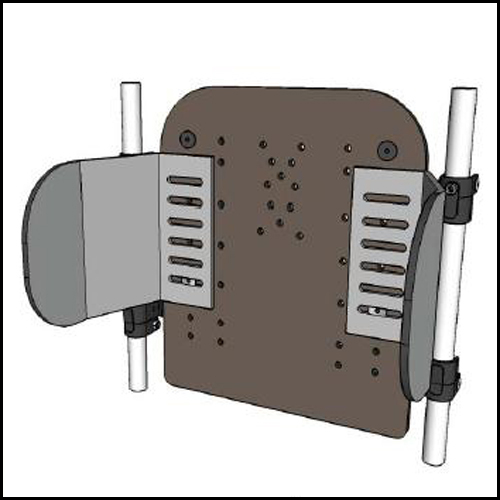

This unique back provides incredible comfort and support. Easily add or remove the fiber-fill material from the individual zippered pillow bladders to create the custom feel your client is looking for.
• Available in 7 different sizes
• Track mount J & L hardware kit
• 1 pair laterals, Mix or match all 3 sizes
• Modular lateral support system
Part Number* |
Frame Width |
Back Width |
Back Height |
13009-100 |
13-15" |
11" |
13.5" |
13009-101 |
15-17" |
13" |
15.5" |
13009-102 |
15-17" |
13" |
19" |
13009-105 |
17-19" |
15" |
18" |
13009-106 |
17-19" |
15" |
21" |
13009-109 |
19-21" |
17" |
20" |
13009-110 |
19-21" |
17" |
23" |
*See order form for complete ordering details |

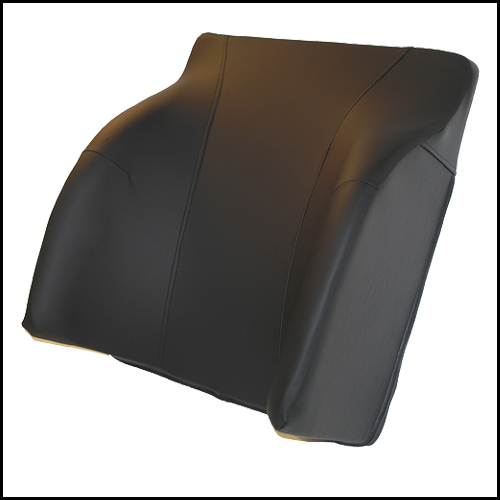

This contoured back is built to your exact specifications, it includes built-in foam lateral supports and mounting hardware.

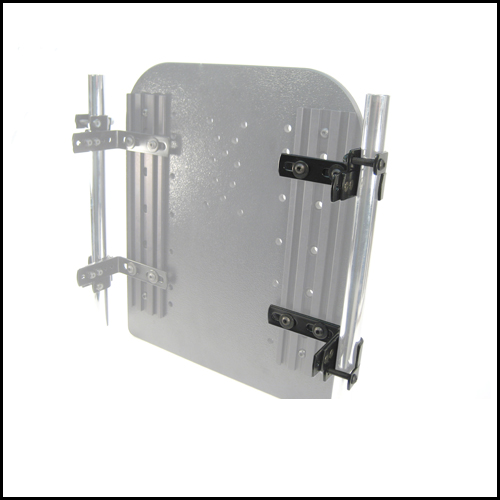

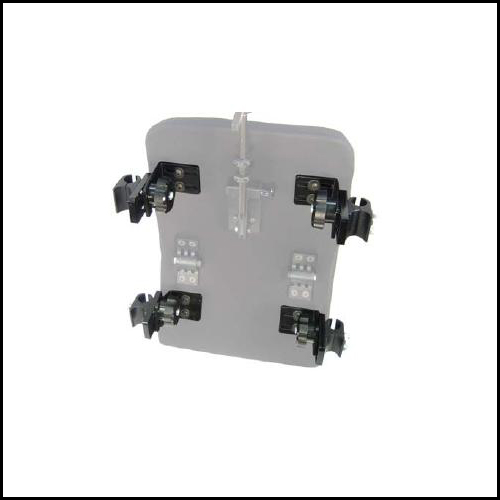

• J & L track mount hardware kits
• Zippered closure Dartex covert
• 1" HR-Poly foam
• ½"multi-ply wood
• 4- 20 T-nuts
13009-SBA
Part Number |
Back Modifications/Upgrades |

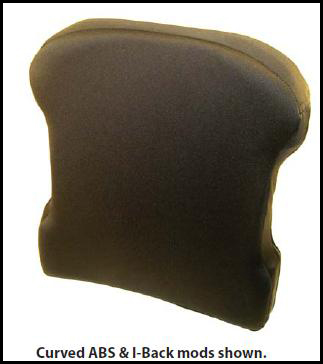

13010-C |
Curved ABS Back Mod |
13010-I |
I-Back Mod |
13010-T |
T-Back Mod |
13011-RT |
Rounded Top Mod |
13010-LS |
Foam Lumbar Support Mod |

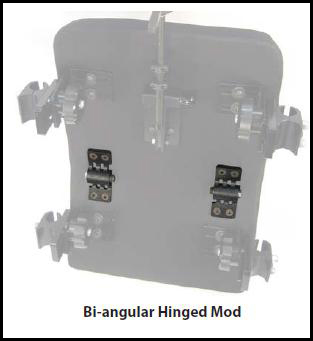

13010-BI |
Bi-Angular Hinged Mod |
13010-TM2 |
Track Mount Hardware Option |
UPH-06 |
Embroidery / Monogram Option |
Starts as a planar back however add all options & modifications necessary to meet your client's custom needs, back dimensions up to 15" Wide.
Note: See pediatric back order form for recommendations for widths of 10-12"
• J & L track mount hardware kits
• Zippered closure Dartex covert
• 1" HR-Poly foam
• ½"multi-ply wood
• 4- 20 T-nuts
13009-PE
Part Number |
Back Modifications/Upgrades |
13010-C |
Curved ABS Back Mod |
13010-I |
I-Back Mod |
13010-T |
T-Back Mod |
13011-RT |
Rounded Top Mod |
13010-LS |
Foam Lumbar Support Mod |
13010-BI |
Bi-Angular Hinged Mod |
13010-TM2 |
Track Mount Hardware Option |
UPH-06 |
Embroidery / Monogram Option |

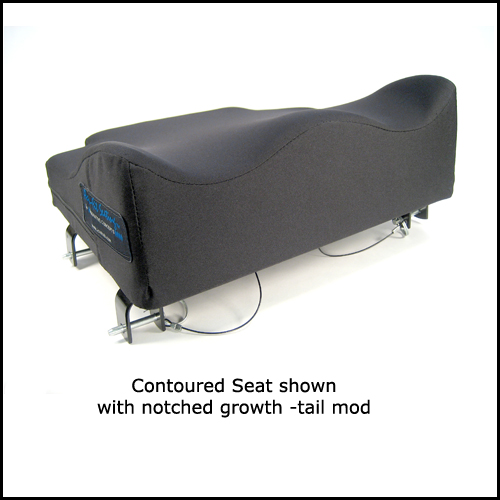

Choose from up to 3 standard contour build-ups Mild, Moderate (standard) or Aggressive Contouring. Or create exactly what dimension/shapes are needed, by filling out our contoured seat order form. Add all options & modifications necessary to meet your client's specific needs.

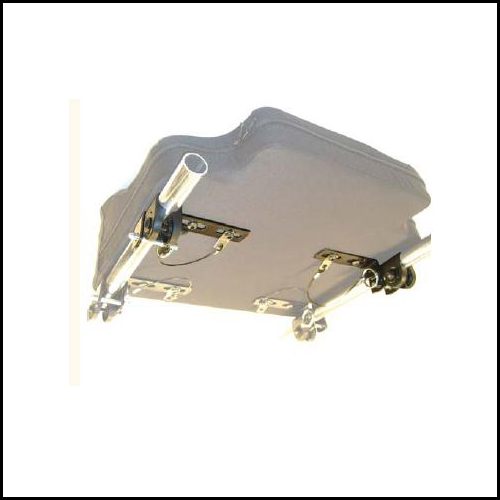

• (4) Track mount U-Clamp hardware
• Zippered closure Dartex covert
• 1" HR-Poly foam
• ½"multi-ply wood
• ½" base etha-foam
• 4- 20 T-nuts
13003-SA
Part Number |
Seat Modifications/Upgrades |
13003-AT |
Anti-Thrust Mod |

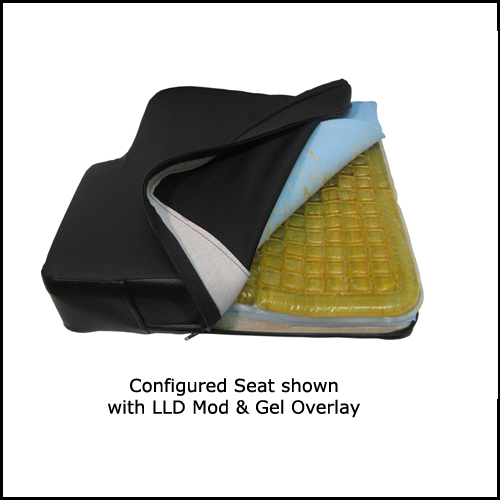

13005-LLD |
Leg Length Descrepancy (LLD) Mod |
13007-CS |
Contoured Seat Foam Mod |
13007-22 |
Coushin-Seperated From Wood |
13008-IC |
Incontinent Inner-liner Cover |
13008-WS |
Wedge Seat Option |
13010-TM2 |
Track Mount Hardware Option |
This Seat is designed to offer the selection of individually priced options & modifications. Add all options & modifications necessary to meet your client's specific needs.

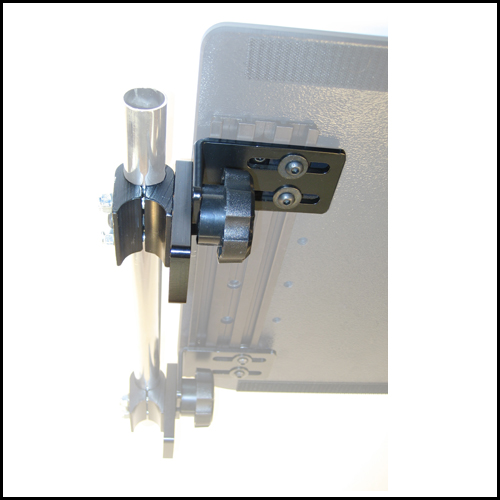

• Track Mount J & L Hardware Kit
• Zippered Closure Dartex Cover
• 1" HR-Poly Foam
• ½" Multi-ply Wood
• ½" Base Etha-foam
• 4- 20 T-nuts
13003-02
Part Number |
Seat Modifications/Upgrades |
13003-AT |
Anti-Thrust Mod |
13005-LLD |
Leg Length Descrepancy (LLD) Mod |
13007-CS |
Contoured Seat Foam Mod |
13007-22 |
Coushin-Seperated From Wood |
13008-IC |
Incontinent Inner-liner Cover |
13008-WS |
Wedge Seat Option |
13010-TM2 |
Track Mount Hardware Option |
Starts as a planar seat however add all options & modifications necessary to meet your client's custom needs, seat dimensions up to 15" Wide.
• (4) Track mount U-Clamp hardware
• Zippered Closure Dartex Cover
• 1" HR-Poly Foam
• ½" Multi-ply Wood
• 4- 20 T-nuts
13002-PE
Part Number |
Seat Modifications/Upgrades |
13003-AT |
Anti-Thrust Mod |
13005-LLD |
Leg Length Descrepancy (LLD) Mod |
13007-CS |
Contoured Seat Foam Mod |
13007-22 |
Coushin-Seperated From Wood |
13008-IC |
Incontinent Inner-liner Cover |
13008-WS |
Wedge Seat Option |
13010-TM2 |
Track Mount Hardware Option |
HCPC K0108
| 7/8" Clamp Mount | 1" Clamp Mount | Omit Mounting Hardware | |
5" Wide |
11035-90 |
11035-901 |
11035-90X |
6" Wide |
11036-00 |
11036-001 |
11036-00X |
7" Wide |
11036-01 |
11036-011 |
11036-01X |
8" Wide |
11036-02 |
11036-021 |
11036-02X |
9" Wide |
11036-03 |
11036-031 |
11036-03X |
10" Wide |
11036-04 |
11036-041 |
11036-04X |
HCPC K0108
| 7/8" Clamp Mount | 1" Clamp Mount | Omit Mounting Hardware | |
12.5" Wide |
11037-00 |
11035-001 |
11035-00X |
14.5" Wide |
11037-01 |
11037-011 |
11037-01X |
16.5" Wide |
11037-02 |
11037-021 |
11037-02X |
HCPC K0108
| 7/8" Clamp Mount | 1" Clamp Mount | Omit Mounting Hardware | |
5" Wide |
11036-08 |
11036-081 |
11036-08X |
6" Wide |
11036-10 |
11036-101 |
11036-10X |
7" Wide |
11036-20 |
11036-201 |
11036-20X |
8" Wide |
11036-30 |
11036-301 |
11036-30X |
9" Wide |
11036-40 |
11036-401 |
11036-40X |
10" Wide |
11036-50 |
11036-501 |
11036-50X |
HCPC K0108
| 7/8" Clamp Mount | 1" Clamp Mount | Omit Mounting Hardware | |
5" Wide |
11036-09 |
11036-091 |
11036-09X |
6" Wide |
11036-011 |
11036-111 |
11036-11X |
7" Wide |
11036-021 |
11036-211 |
11036-21X |
8" Wide |
11036-031 |
11036-311 |
11036-31X |
9" Wide |
11036-041 |
11036-411 |
11036-41X |
10" Wide |
11036-51 |
11036-511 |
11036-51X |
HCPC K0108
| Complete With 6" Extension Tube (Single) | ||
| Size | 7/8" Clamp Mount | 1" Clamp Mount |
4"x8" |
11057-00 |
11057-01 |
5"x10" |
11057-10 |
11057-11 |
| Complete With 12" Extension Tube (Single) | ||
| Size | 7/8" Clamp Mount | 1" Clamp Mount |
4"x8" |
11057-02 |
11057-03 |
5"x10" |
11057-12 |
11057-13 |
HCPC K0108

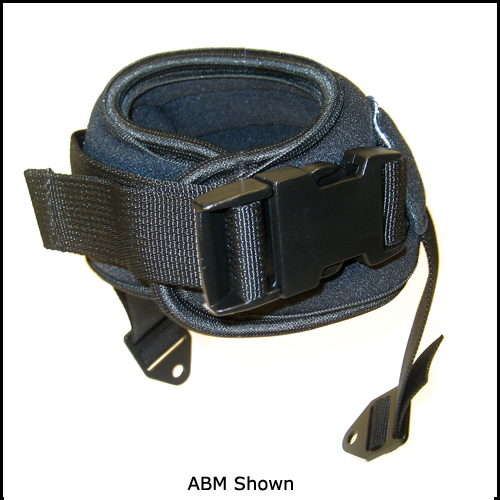

These ergonomically designed foot positioning straps are made using Hyper-cel® material. A superior 3/8” thick, high density open cell polyurethane laminate material with breathable construction, higher longation and excellent internal strength. Ankle Cuffs™ help stabilize the foot/ankle while allowing limited movement.
Mounting Options:Ankle Cuffs™ Velcro-Release Straps |
|||
| Small 6-8" | Medium 8-10" | Large 10-12" | |
AMB |
110451-S |
110451-M |
110451-L |

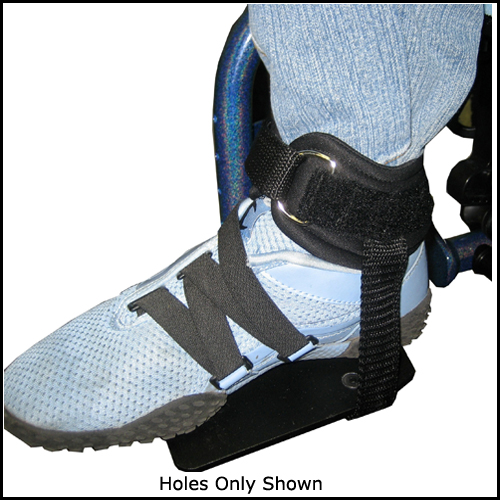

Holes-Only |
11045-S |
11045-M |
11045-L |
Ankle Cuffs™ Side-Release Straps |
|||
| Small 6-8" | Medium 8-10" | Large 10-12" | |
AMB |
110452-S |
110452-M |
110452-L |
Holes-Only |
110453-S |
110453-M |
110453-L |
HCPC E0951

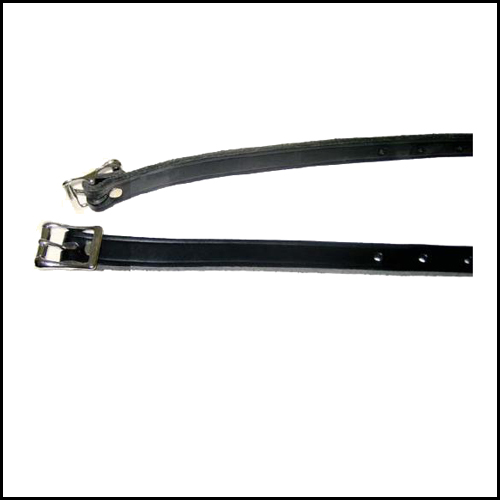

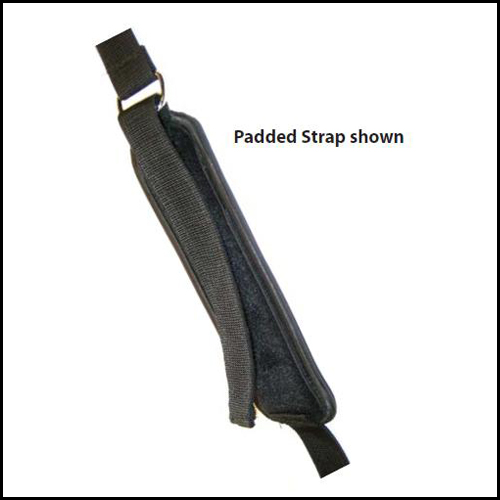

| Toe/Ankle Straps (Pair) | |||
| Size | Padded | Non-Padded | Adjustment Range |
Child |
11001 |
11004 |
7-9" |
Youth |
11002 |
11005 |
8.5-12.5" |
Adult |
11003 |
11006 |
9-13" |
X-Large |
11003-XL |
11006-XL |
11.5-17" |
HCPC E0951

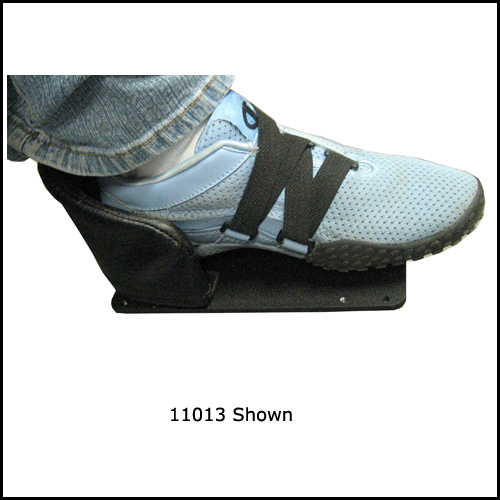

Part Number: 11013
HCPC E0951
| Size | Part Number |
Child |
11011 |
Adult |
11012 |
Adjustable |
11013 |
HCPC E0951
| Size | Part Number |
Child |
10957 |
Adult |
10958 |
HCPC 0959

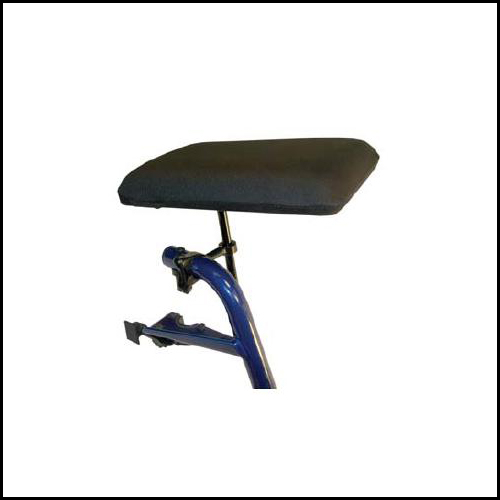

Amputee Support (Fixed Angle) |
|
| 7/8" Tube Clamp | 1" Tube Clamp |
11050 |
11050-01 |
HCPC 0959

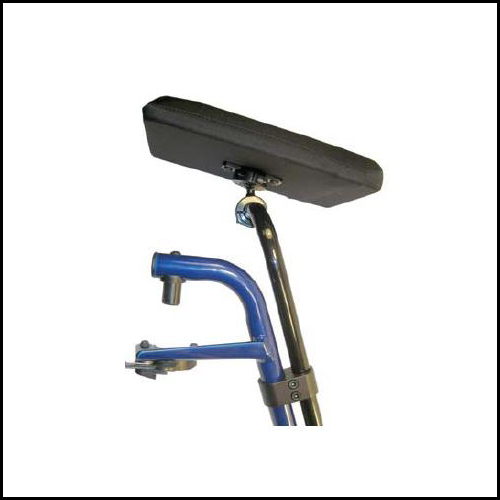

Amputee Support (Adjustable Angle) |
|
| 7/8" Tube Clamp | 1" Tube Clamp |
11050-10 |
11050-11 |

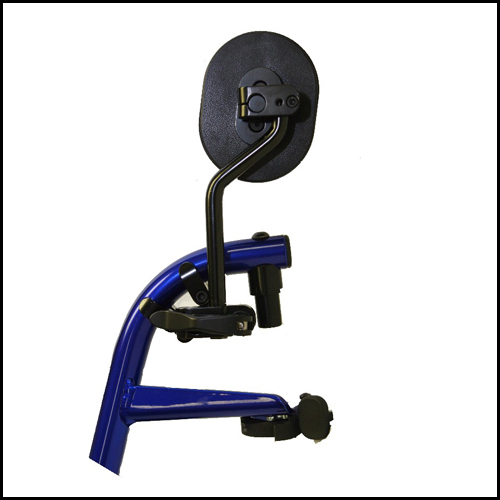

Complete assembly comes with soft poly-gel 3”x4” pad, multi-positioning bracket allows for infinite adjustment. Easy to use “Lever Release” bracket.
| Part Number | 7/8" Removable Knee Adductor Assembly | 1" Removable Knee Adductor Assembly |
|---|---|---|
| Each | 11067-E | 11068-E |
| Pair | 11067-2 | 11068-2 |

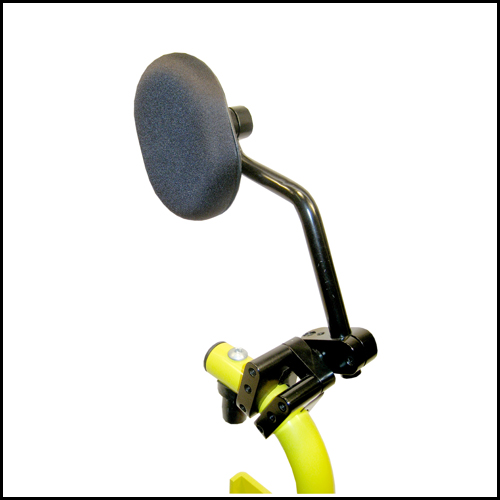

Complete assembly comes with soft poly-gel 3”x4” pad, multi-positioning bracket allows for infinite adjustment.
| Part Number | 7/8" Fixed Knee Adductor Assembly | 1" Fixed Knee Adductor Assembly |
|---|---|---|
| Each | 11064-E | 11065-E |
| Pair | 11064-2 | 11065-2 |

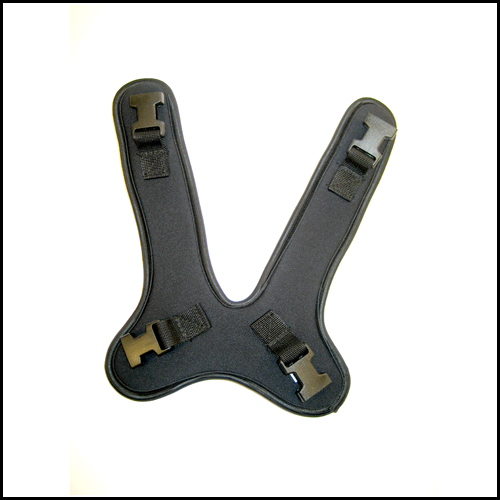

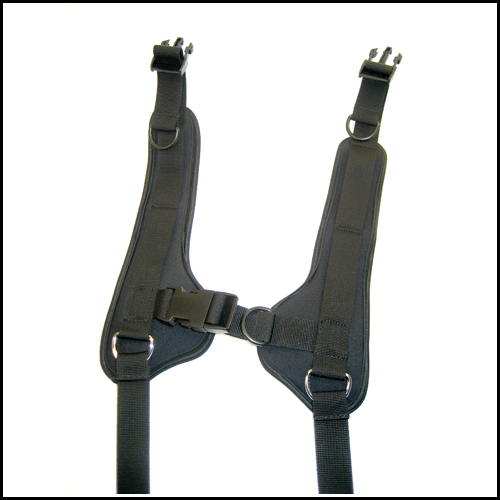

Pair complete comes with (2) soft poly-gel 4” round pads, (2) clamp style mounting brackets that fit 7/8” – 1” tubing.

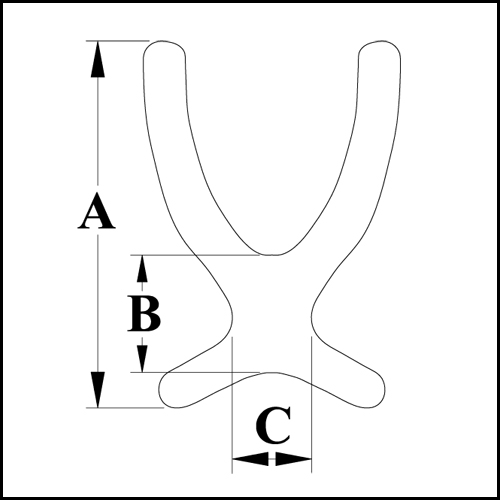

| Standard Fit harnesses | ||||||
|---|---|---|---|---|---|---|
| Hyper-cel (R) | Zippered | Vinyl-Face | No-Stretch | A | B | C |
| 11041-10 | 11041-20 | 11041-30 | 11041-40 | 14" | 4" | 4" |
| 11041-11 | 11041-21 | 11041-31 | 11041-41 | 17" | 5" | 5" |
| 11041-12 | 11041-22 | 11041-32 | 11041-42 | 20" | 6" | 6" |
| 11041-13 | 11041-23 | 11041-33 | 11041-43 | 22" | 7" | 7" |

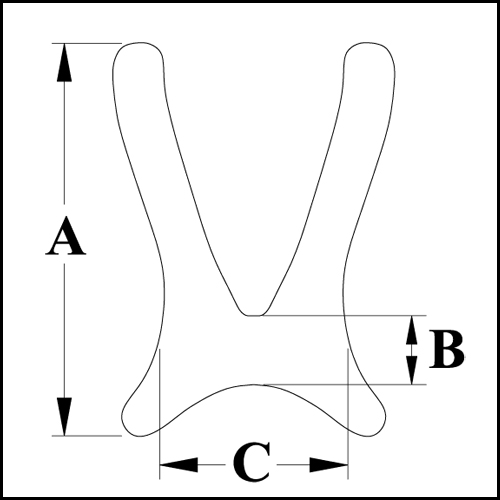

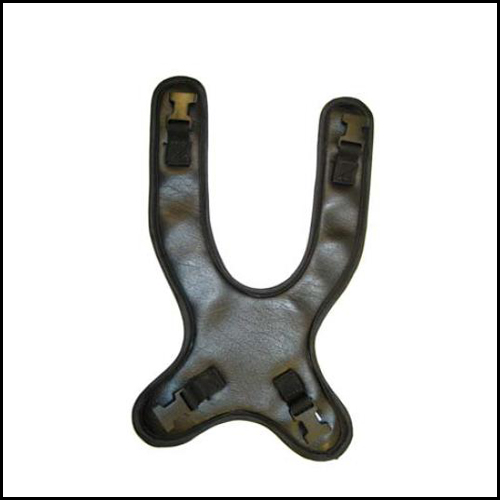

| Butterfly Harnesses | ||||||
|---|---|---|---|---|---|---|
| Hyper-cel (R) | Vinyl-Face | No-Stretch | A | B | C | |
| 11043-10 | 11043-30 | 11043-40 | 11" | 2" | 5" | |
| 11043-11 | 11043-31 | 11043-41 | 12" | 2.5" | 6" | |
| 11043-12 | 11043-32 | 11043-42 | 13.5" | 4.5" | 6" | |
| 11043-13 | 11043-33 | 11043-43 | 14.5" | 4.5" | 7" | |

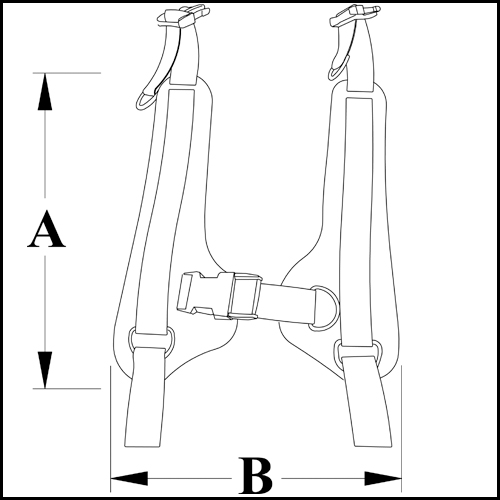

| "H2" Harnesses | ||||||
|---|---|---|---|---|---|---|
| Hyper-cel (R) | Vinyl-Face | No-Stretch | A | B | ||
| 11044-10 | 11044-30 | 11044-40 | 12" | 7.5" | ||
| 11044-11 | 11044-31 | 11044-41 | 14" | 8" | ||
| 11044-12 | 11044-32 | 11044-42 | 16.5" | 8.5" | ||
| 11044-13 | 11044-33 | 11044-43 | 19" | 9" | ||

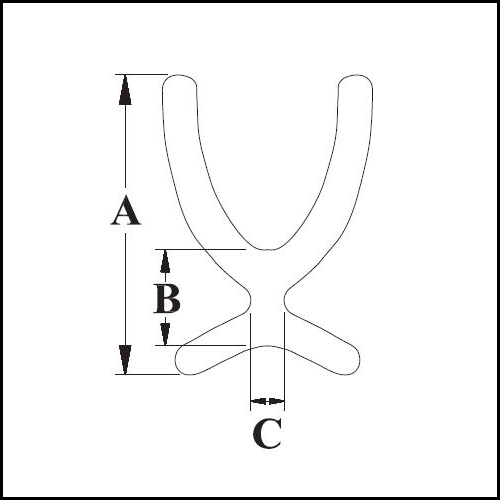

| Slim-Fit Harnesses | ||||||
|---|---|---|---|---|---|---|
| Hyper-cel (R) | Vinyl-Face | A | B | C | ||
| 11042-10 | 11042-30 | 14" | 4" | 1" | ||
| 11042-11 | 11042-31 | 17" | 5" | 1" | ||
| 11042-12 | 11042-32 | 20" | 6" | 1" | ||
| 11042-13 | 11042-33 | 22" | 7" | 1.5" | ||
| 11042-14 | 11042-34 | 24" | 8" | 2" | ||
 Offset |

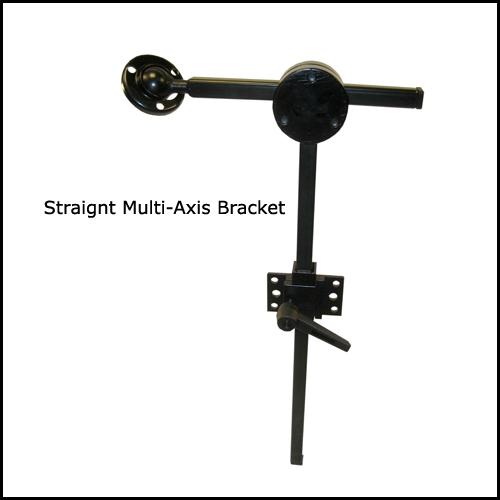

 Straight |
 Flip-Down |

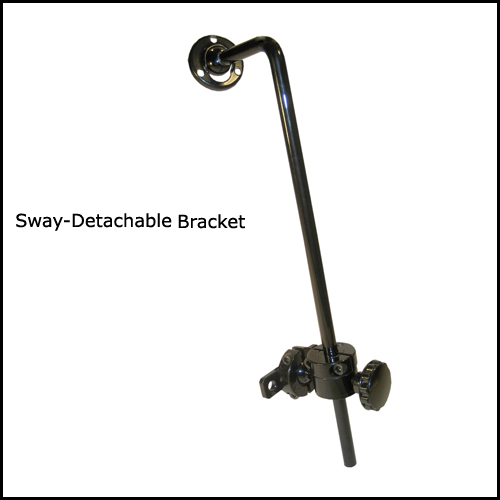

 Sway-Detachable (2" offset bar) (4" offset bar) |

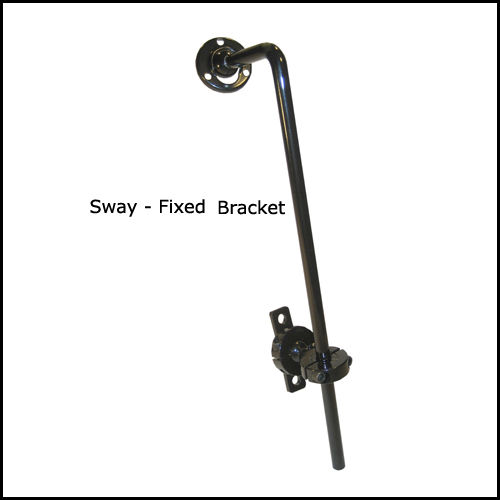

 Sway-Fixed (2" offset bar) (4" offset bar) |
||
 |
9" Comfort Max (Dartex) |
4008-40 | 4009-40 | 4006-40 | 4007-22-40 (2") 4007-44-40 (4") |
4007-2-40 (2") 4007-4-40 (4") |
| 9" Comfort Max (Reversed) |
4008-39 | 4009-39 | 4006-39 | 4007-22-40 (2") 4007-44-41 (4") |
4007-2-41 (2") 4007-4-41 (4") |
|
 |
11" Comfort Max (Dartex) |
4008-42 | 4009-42 | 4006-42 | 4007-22-42 (2") 4007-44-42 (4") |
4007-2-42 (2") 4007-4-42 (4") |
| 11" Comfort Max (Reversed) |
4008-41 | 4009-41 | 4006-41 | 4007-22-39 (2") 4007-44-39 (4") |
4007-2-39 (2") 4007-4-39 (4") |
|
 |
9" Molded Pad | 4008-10 | 4009-10 | 4006-10 | 4007-22-10 (2") 4007-44-10 (4") |
4007-2-10 (2") 4007-4-10 (4") |
 |

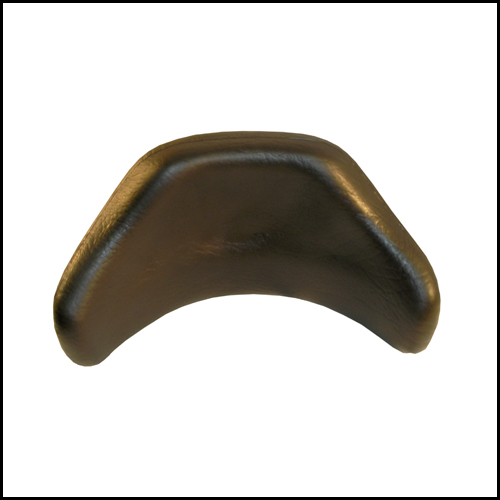

11" Molded Pad | 4008-11 | 4009-11 | 4006-11 | 4007-22-11 (2") 4007-44-11 (4") |
4007-2-11 (2") 4007-4-11 (4") |
 |
Head/Neck Pad | 4008-12 | 4009-12 | 4006-12 | 4007-22-12 (2") 4007-44-12 (4") |
4007-2-12 (2") 4007-4-12 (4") |
| Contoured Pad | 4008-13 | 4009-13 | 4006-13 | 4007-22-13 (2") 4007-44-13 (4") |
4007-2-13 (2") 4007-4-13 (4") |
|
 |
Tri-Panel Hinged (Pediatric) |
4008-50 | 4009-50 | 4006-50 | 4007-22-50 (2") 4007-44-50 (4") |
4007-2-50 (2") 4007-4-50 (4") |
| Tri-Panel Hinged (Adult) |
4008-53 | 4009-53 | 4006-53 | 4007-22-53 (2") 4007-44-53 (4") |
4007-2-53 (2") 4007-4-53 (4") |
|

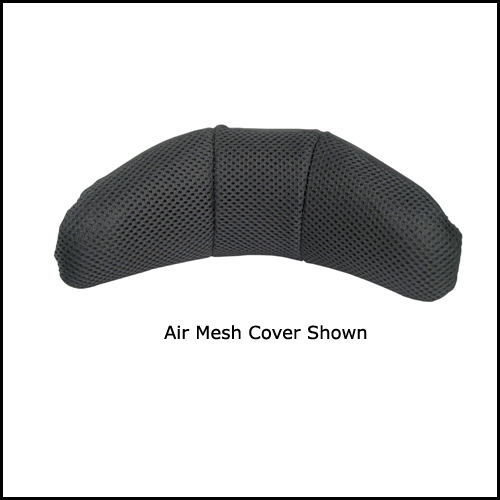

Base is made of a pliable metal panel with a 1" ball socket. Padded with ½" high density neoprene foam and a 1"thick layer of super-soft Visco-Cel Foam.
• Removable zippered standard or reversed dartex cover.
• Substitute at no-charge, the breathable Air-mesh cover.
Base is made of a pliable metal panel with a 1" ball socket. Covered in a protective molded urethane foam that is easily wiped clean.
Comes as a set of 3 hinged (adult or pediatric) pads offering posterior and adjustable lateral head support. Made with ½" multi-ply wood, 1" socket adaptor interface, 1" Soft Visco-Cel foam.
• Standard Dartex upholstery.
• Specify other fabric choices and colors.
• Better posterior range/adjustment.
• Detachable bracket.
• 1" ball socket.
• Increased forward headrest positioning
• Detachable bracket.
• 1" ball socket.

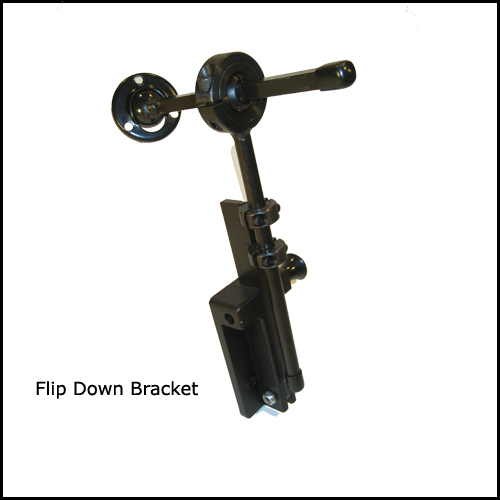

• Simple lever-release flip-down feature
• Allows headrest to remain attached
• Extended "Lateral Reach"
• Simple knob release Detaches headrest
• 2"or 4"horizontal offset bars available
• 1" or 7/8" ball sockets available
• Extended "Lateral Reach"
• Non-Removable
• 2"or 4"horizontal offset bars available
• 1" or 7/8" ball sockets available
| * Part No. | Type | Size |
|---|---|---|
| XX=add to lateral thigh support Part no. | ||
| 10 | ABS | 3.5x5.5" |
| 11 | ABS | 4.5x6.5" |
| 12 | ABS | 5.5x7.5" |
| 30 | Wood | 3.5x5.5" |
| 31 | Wood | 4.5x6.5" |
| 32 | Wood | 5.5x7.5" |
| 33 | Wood | Rectangular |
| 34 | Wood | Contoured |
| *Use with lateral thigh support only | ||
Note: All Lateral pads come with ½” high density Neoprene foam. Please specify either standard or reversed dartex material.
• Includes Trunk bracket & pad
• XX=must specify pad type/size using the table above
| Slim-Fit TM Lateral Thigh Support | |
|---|---|
| *Part No. | Bracket Description |
| 11070-5XX | Straight / 5" Height |
| 11070-6XX | Straight / 6" Height |
| 11070-7XX | 1" Offset / 5" Height |
| 11071-5XX | 1" Offset / 6" Height |
| 11071-6XX | 2" Offset / 5" Height |
| 11071-7XX | 2" Offset / 6" Height |
• Straight and 1" offset adaptor plate included
• Includes (1) Trunk bracket & pad
• XX=must specify pad type/size using the table above
• Bracket has dual locking mechhanism (under seat = ease of transfers)
• Pad includes etha-foam (high density) base foam covered with 1/2” Soft Sun-Mate
| Flip-Down/Removable Abductor Pads | ||||
|---|---|---|---|---|
| Pad dimensions (inches) | Part No. | |||
| Width | Length | Height | Std-Dartex | Rev-Dartex |
| 3 | 4 | 3 | 11060-10 | 11060-101 |
| 4 | 5 | 3 | 11060-11 | 11060-111 |
| 5 | 6 | 3 | 11060-12 | 11060-121 |
| Specify Custom Size | 11060-15 | 11060-151 | ||
• Knob allows upper bracket & pad to be removed
• Not recommended for clients who “Self-Transfer”
• Pad includes etha-foam (high density) base foam covered with 1/2” Soft Sun-Mate
| Econo-Removable Abductor Pads | ||||
|---|---|---|---|---|
| Pad dimensions (inches) | Part No. | |||
| Width | Length | Height | Std-Dartex | Rev-Dartex |
| 3 | 4 | 3 | 11059-10 | 11059-101 |
| 4 | 5 | 3 | 11059-11 | 11059-111 |
| 5 | 6 | 3 | 11059-12 | 11059-121 |
| Specify Custom Size | 11059-15 | 11059-151 | ||
| Abductor Pads Only | ||||
|---|---|---|---|---|
| Pad dimensions (inches) | Part No. | |||
| Width | Length | Height | Std-Dartex | Rev-Dartex |
| 3 | 4 | 3 | 11061 | 11061-11 |
| 4 | 5 | 3 | 11062 | 11062-11 |
| 5 | 6 | 3 | 11063 | 11063-11 |
| Specify Custom Size | 11063-50 | 11063-51 | ||
| * Part No. | Type | Size |
|---|---|---|
| XX=add to lateral trunk support Part no. | ||
| 10 | ABS-Flat | 3.5x5.5" |
| 11 | ABS-Flat | 4.5x6.5" |
| 12 | ABS-Flat | 5.5x7.5" |
| 20 | ABS-Curved | 3.5x5.5" |
| 21 | ABS-Curved | 4.5x6.5" |
| 22 | ABS-Curved | 5.5x7.5" |
| 30 | Wood-Flat | 3.5x5.5" |
| 31 | Wood-Flat | 4.5x6.5" |
| 32 | Wood-Flat | 5.5x7.5" |
| Use with lateral trunk support only | ||
Note: All Lateral pads come with ½” high density Neoprene foam. Please specify either standard or reversed dartex upholstery.
• Straight & 1" Offset Adaptor plate included
• Includes bracket & pad
• XX=must specify pad type/size using the table above
• Includes bracket & pad
• XX=must specify pad type/size using the table above
• Includes bracket & pad
• XX=must specify pad type/size using the table above
• Includes bracket & pad (Each)
• XX=must specify pad type/size using the table above
| Slim Fit TM Lateral Trunk Support (Each) | |
|---|---|
| *Part No. | Bracket Description |
| 3018-02XX | Straight / 5" Height |
| 3018-01XX | Straight / 6" Height |
| 3025-02XX | 1" Offset / 5" Height |
| 3025-01XX | 1" Offset / 6" Height |
| 3017-02XX | 2" Offset / 5" Height |
| 3017-01XX | 2" Offset / 6" Height |
| Lateral Trunk Support Pad-Only (Each) | ||||
|---|---|---|---|---|
| Height | Depth | ABS-Flat | Abs-Curved | Wood-Flat |
| 3.5" | 5.5" | 11017-S | 11014-S | 11020-S |
| 4.5" | 6.5" | 11017-M | 11014-M | 11020-M |
| 5.5" | 7.5" | 11017-L | 11014-L | 11020-L |
2-Point Padded Seat Belts |
Buckle Type |
|||||||||
| Size Inches |
Pad Size |
Mounting Hardware |
1" Side Release |
1.5" Side Release |
2" Side Release |
1" Plastic Push Button |
1.5" Metal Push Button |
2" Metal Push Button |
Metal Lever-Latch |
|
42 |
Pediatric |
AMB |
11022-A1 |
11022-D1 |
||||||
42 |
Pediatric |
BA |
11022-A2 |
11022-D2 |
||||||
60 | Youth | AMB |
11022-B3 |
11022-E3 |
||||||
60 |
Youth |
BA |
11022-B4 |
11022-E4 |
||||||
80 |
Adult |
AMB |
11022-C5 |
11022-F5 |
11022-G5 |
|||||
80 |
Adult |
BA |
11022-C6 |
11022-F6 |
11022-G6 |
|||||
2-Point Padded Seat Belts |
Buckle Type |
|||||||||
| Size Inches |
Pad Size |
Mounting Hardware |
1" Side Release |
1.5" Side Release |
2" Side Release |
1" Plastic Push Button |
1.5" Metal Push Button |
2" Metal Push Button |
Metal Lever-Latch |
|
42 |
Pediatric |
AMB |
11022-A7 |
|||||||
42 |
Pediatric |
BA |
11022-A8 |
|||||||
60 | Youth | AMB |
11022-B9 |
|||||||
60 |
Youth |
BA |
11022-B10 |
|||||||
80 |
Adult |
AMB |
11022-C11 |
|||||||
80 |
Adult |
BA |
11022-C12 |
|||||||
2-Point Padded Seat Belts |
Buckle Type |
|||||||||
| Size Inches |
Pad Size |
Mounting Hardware |
1" Side Release |
1.5" Side Release |
2" Side Release |
1" Plastic Push Button |
1.5" Metal Push Button |
2" Metal Push Button |
Metal Lever-Latch |
|
42 |
Pediatric |
AMB |
11022-A13 |
11022-D13 |
||||||
42 |
Pediatric |
BA |
11022-A14 |
11022-D14 |
||||||
60 | Youth | AMB |
11022-B15 |
11022-E15 |
||||||
60 |
Youth |
BA |
11022-B16 |
11022-E16 |
||||||
80 |
Adult |
AMB |
11022-C17 |
11022-F17 |
11022-G17 |
|||||
80 |
Adult |
BA |
11022-C18 |
11022-F18 |
11022-G18 |
|||||
4-Point Padded Seat Belts |
Buckle Type |
|||||||||
| Size Inches |
Pad Size |
Mounting Hardware |
1" Side Release |
1.5" Side Release |
2" Side Release |
1" Plastic Push Button |
1.5" Metal Push Button |
2" Metal Push Button |
Metal Lever-Latch |
|
42 |
Pediatric |
AMB |
11022-A19 |
11022-D19 |
||||||
42 |
Pediatric |
BA |
11022-A20 |
11022-D20 |
||||||
60 | Youth | AMB |
11022-B21 |
11022-E21 |
||||||
60 |
Youth |
BA |
11022-B22 |
11022-E22 |
||||||
80 |
Adult |
AMB |
11022-C23 |
11022-F23 |
11022-G23 |
|||||
80 |
Adult |
BA |
11022-C24 |
11022-F24 |
11022-G24 |
|||||
4-Point Padded Seat Belts |
Buckle Type |
|||||||||
| Size Inches |
Pad Size |
Mounting Hardware |
1" Side Release |
1.5" Side Release |
2" Side Release |
1" Plastic Push Button |
1.5" Metal Push Button |
2" Metal Push Button |
Metal Lever-Latch |
|
42 |
Pediatric |
AMB |
11022-A25 |
|||||||
42 |
Pediatric |
BA |
11022-A26 |
|||||||
60 | Youth | AMB |
11022-B27 |
|||||||
60 |
Youth |
BA |
11022-B28 |
|||||||
80 |
Adult |
AMB |
11022-C29 |
|||||||
80 |
Adult |
BA |
11022-C30 |
|||||||
4-Point Padded Seat Belts |
Buckle Type |
|||||||||
| Size Inches |
Pad Size |
Mounting Hardware |
1" Side Release |
1.5" Side Release |
2" Side Release |
1" Plastic Push Button |
1.5" Metal Push Button |
2" Metal Push Button |
Metal Lever-Latch |
|
42 |
Pediatric |
AMB |
11022-A31 |
11022-D31 |
||||||
42 |
Pediatric |
BA |
11022-A32 |
11022-D32 |
||||||
60 | Youth | AMB |
11022-B33 |
11022-E33 |
||||||
60 |
Youth |
BA |
11022-B34 |
11022-E34 |
||||||
80 |
Adult |
AMB |
11022-C35 |
11022-F35 |
11022-G35 |
|||||
80 |
Adult |
BA |
11022-C36 |
11022-F36 |
11022-G36 |
|||||
2-Point Non-Padded Seat Belts |
Buckle Type |
|||||||||
| Size Inches |
Pad Size |
Mounting Hardware |
1" Side Release |
1.5" Side Release |
2" Side Release |
1" Plastic Push Button |
1.5" Metal Push Button |
2" Metal Push Button |
Metal Lever-Latch |
|
42 |
Pediatric |
Holes |
11022-A37 |
11022-D37 |
||||||
42 |
Pediatric |
AMB |
11022-A38 |
11022-D38 |
||||||
42 |
Pediatric |
BA |
11022-A39 |
11022-D39 |
||||||
60 |
Youth |
Holes |
11022-A40 |
11022-B40 |
11022-C40 |
11022-D40 |
11022-E40 |
11022-F40 |
11022-G40 |
|
60 | Youth | AMB |
11022-A41 |
11022-B41 |
11022-C41 |
11022-D41 |
11022-E41 |
11022-F41 |
11022-G41 |
|
60 |
Youth |
BA |
11022-A42 |
11022-B42 |
11022-C42 |
11022-D42 |
11022-E42 |
11022-F42 |
11022-G42 |
|
80 |
Adult |
Holes |
11022-B43 |
11022-C43 |
11022-E43 |
11022-F43 |
11022-G43 |
|||
80 |
Adult |
AMB |
11022-B44 |
11022-C44 |
11022-E44 |
11022-F44 |
11022-G44 |
|||
80 |
Adult |
BA |
11022-B45 |
11022-C45 |
11022-E45 |
11022-F45 |
11022-G45 |
|||
2-Point Non-Padded Seat Belts |
Buckle Type |
|||||||||
| Size Inches |
Pad Size |
Mounting Hardware |
1" Side Release |
1.5" Side Release |
2" Side Release |
1" Plastic Push Button |
1.5" Metal Push Button |
2" Metal Push Button |
Metal Lever-Latch |
|
42 |
Pediatric |
Holes |
11022-A46 |
|||||||
42 |
Pediatric |
AMB |
11022-A47 |
|||||||
42 |
Pediatric |
BA |
11022-A48 |
|||||||
60 | Youth | Holes |
11022-B49 |
11022-C49 |
||||||
60 | Youth | AMB |
11022-B50 |
11022-C50 |
||||||
60 |
Youth |
BA |
11022-B51 |
1022-C51 |
||||||
80 |
Adult |
Holes |
11022-B52 |
11022-C52 |
||||||
80 |
Adult |
AMB |
11022-B53 |
11022-C53 |
||||||
80 |
Adult |
BA |
11022-B54 |
11022-C54 |
||||||
• Kit includes (4) J & L’s, (2) Swivel finger tabs And (2) Bent fixed finger tabs
• Allows for maximum adjustability
• Use with Seat or Back applications
| *Full-Width Kit | *Drop-In Kit | |||
| 2-Hole J's / 9-Hole L's | 4-Hole J's / 7-Hole L's | 7-Hole J's / 7-Hole L's | 9-Hole J's / 3-Hole L's | |
| 7/8" Tube | 2300-061 | 2300-062 | 2300-063 | 2300-064 |
| 1" Tube | 2300-011 | 2300-012 | 2300-013 | 2300-014 |
*Note: Kits utilizing 9-hole J’s provide maximum rearward back depth or maximum drop in seat adjustability. Kits utilizing 9-hole L’s provide maximum forward back depth or maximum seat height.
• (4) Knob-release brackets
• (4) Back mount brackets
• Up to 2.5" depth adjustment
| 4-Point (Back) Knob-release Kits | |
| 7/8" Tube | 2450-78 |
| 1" Tube | 2450-01 |
• Both kits include (2) spring loaded quick release brackets, (2) drop hook brackets and fasteners
• Depth-adjustable kits only include (4) 3" depth-adjustable mount brackets
| "Classic" Quick Release Kits | ||
|---|---|---|
| Standard | Depth-Adjustable | |
| 7/8" Tube | 1006-BK | 1006-AM |
| 1" Tube | 1006-BK1 | 1006-AM1 |
• Kit includes (4) U-Clamps, pins and all fasteners
• Uses locking pin or (optional) bolt to secure brackets to frame rail
• Ideal for limited mounting space
| Flush Mount U-Clamp Kit |
1" Drop U-Clamp Kit |
|
|---|---|---|
| 7/8" Tube | 2199-06 | 2200-06 |
| 1" Tube | 2199-01 | 2200-01 |
• (4) Knob-release brackets
• (4) Seat mount brackets
• Up to 2.5" height/depth adjustment
• Saddle cutout to mount on double rail
| 4-Point (Seat) Knob-release kits | |
|---|---|
| 7/8" Tube | 2400-78 |
| 1" Tube | 2400-01 |
• Kit includes (4) drop hooks
• (2) Swivel finger tabs
• (2) Bent fixed finger tabs
| 1" Drop | 1.5" Drop | 2" Drop | 2.5" Drop | 3" Drop | |
|---|---|---|---|---|---|
| 7/8" Tube | 2220-01 | 2221-01 | 2222-01 | 2223-01 | 2224-01 |
| 1" Tube | 2211-01 | 2212-01 | 2213-01 | 2214-01 | 2215-01 |
.png)
| Seat Features | Back Features |
| Seat "Full Width" with 1" Soft Visco-Cel Foam over 1/2" Base Etha-Foam | I-Back "Between Rails" with Curved Foam Modification |
| (2) Flush Mount U-Clamp Pin-Release Hardware | 1" HR-Poly Foam |
| (2) Rear Seat Rail Tabs | (2) Knob-Release Hardware |
| Track Mount Brackets | Adjustable Seat-to-Back Bracket(s) (2" Offset) |
| Track Mount Brakets (Laterals Only) |
.png)
| Seat Features | Back Features |
| Seat "Between Rails" with 1" Soft Visco-Cel Foam over 1/2" Base Etha-Foam | Back "Between Rails" with 1" HR-Poly Foam |
| (4) Knob-Release Hardware | (2) Knob-Release Hardware |
| Track Mount Brackets | Adjustable Seat-to-Back Bracket(s) (2") Offset |
| Track Mount Brackets |
.png)
| Seat Features | Back Features |
| Contoured Seat "Full-Width" with Built-in Abductor, Adductors and Anti-Thrust and 1" Soft Visco-Cel Foam Over 1/2" Base Etha-Foam | I-Back "Between Rails" with Curved Foam Modification |
| (2) Flush Mount U-Clamp Pin-Release Hardware | 1" HR-Poly Foam |
| (2) Rear Seat Rail Tabs | (2) Knob-Release Hardware |
| Track Mount Brackets | Adjustable Seat-to-Back Bracket(s) (2" Offset) |
| Track Mount Brakets (Laterals Only) |
.png)
| Seat Features | Back Features |
| Seat "Between Rails" with 1" Soft Visco-Cel Foam over 1/2" Base Etha-Foam | Back "Between Rails" with 1" HR-Poly Foam |
| (4) Knob-Release Hardware | (2) Knob-Release Hardware |
| Track Mount Brackets | Adjustable Seat-to-Back Bracket(s) (2") Offset |
| Track Mount Brackets |
• Durable 1/4" ABS Material
• Available in 12",14", 16" Lengths
• Comfortable 3/8" thick Lycra covered neoprene padding
| Part # | Description |
|---|---|
| 3500-01 | 12" Trough |
| 3500-02 | 14" Trough |
| 3500-03 | 16" Trough |
| Part No. | Mounting hardware / options |
|---|---|
| 3500-40 | Removable-adjustable 7/8" Mount |
| 3500-42 | Removable-adjustable 1" Mount |
| 3501-8 | ABS slide-on bracket 8" |
| 3501-12 | ABS slide-on bracket 12" |
| 3502-3 | Angle adjustable ball & socket 3/4" Mount |
| 3502-7 | Angle adjustable ball & socket 7/8" Mount |
| 3505-01 | Padded wrist strap 10" |
| 3505-02 | Padded wrist strap 12" |
| 3505-03 | Padded wrist strap 14" |
This “Crash Tested” rigid foam tray can be used by wheelchair riders being transported in motor vehicles. A great idea for people who need upper extremity support to maintain an upright posture.
| Foam Transportations Trays | |
|---|---|
| Part # | Description |
| 12000-01 | Small Tray |
| 12000-02 | Medium Tray |
| 12000-03 | Large Tray |
| 12000-04 | New Ex-Large |
• Durable 3/8” Thick Clear Polycarbonate
• Stomach Cut-out
• 4 Sizes to choose from
• Slotted for Universal Knob-clamp hardware
(Sold Separately)
| Economy Style Poly-Trays | |
|---|---|
| Part No. | Description |
| 12012-11 | Small Tray |
| 12012-12 | Medium Tray |
| 12012-13 | Large Tray |
| 12012-14 | Ex-Large Tray |
| Universal Knob-Clamp Mounting Hardware | |
|---|---|
| Part No. | Description |
| 12002 | Universal Knob-Clamp Hardware |
• 3/8" thick tray
• Stomach cut-out (standard)
• Tray rims-attached
• (2) Toggle clamps
• (2) Adjustable toggle mounting plates
| Polycarbonate Trays-Complete | |
|---|---|
| Part # | Description |
| 12005 | Small Tray |
| 12006 | Medium Tray |
| 12007 | Large Tray |
| 12008 | Ex-Large Tray |
• 3/8" thick tray
• Blank (no cut-outs)
• Tray rims-attached
• Toggle clamps
• Adjustable toggle mounting plates
| Polycarbonate Tray Blanks-Complete | |
|---|---|
| Part # | Description |
| 12012-01 | Small Tray |
| 12012-02 | Medium Tray |
| 12012-03 | Large Tray |
| 12012-04 | Ex-Large Tray |
• 3/8" thick tray
• Blank (no cut-outs)
| Polycarbonate Tray Blanks | |
|---|---|
| Part # | Description |
| 12013-01 | Small Tray |
| 12013-02 | Medium Tray |
| 12013-03 | Large Tray |
| 12013-04 | Ex-Large Tray |
• ¼” thick polycarbonate tray
• Poly tray slide bracket (Desk or Full Length)
| Hemi Half Lap Trays | |
|---|---|
| Left | 12003 |
| Right | 12004 |
| Tray hardware / Accessories | |
|---|---|
| Part No. | Description |
| 12001 | Vertical toggle clamp, each |
| 12001-T | T-handle toggle clamp, each |
| 12001-U | "U" tubular arm clamp for toggle, each |
| 12002-8 | 8" ABS tray slides, pair |
| 12002-12 | 12" ABS tray slides, pair |
| 12002-J | "J" style 8" ABS tray slides, pair |
| 12002-J12 | "J" style 12" ABS tray slides, pair |
| 12009 | Full-Tray pad, vinyl cover |
| 12025 | Slotted toggle plates, pair |
| 12026 | Double slotted toggle plates, pair |
| 12027 | Tray-Rims polycarbonate (set of 3) |
| 12029 | 9" ABS tray swivel brackets, pair |
| 12029-F | 12" ABS tray swivel brackets, pair |
| GEL Armrest Pads (Each) | |
|---|---|
| Part # | Description |
| 9004 | 2"x12" |
| 9003 | 3.5"x12" |
| 9003-14 | 3.5"x14" |
| 9003-16 | 3.5"x16" |
| GEL "Stick On" Pads (Each) | |
|---|---|
| Part # | Description |
| 9000 | 3"x4" |
| 9001 | 4"x8" |
| 9002 | EGG Shape |
